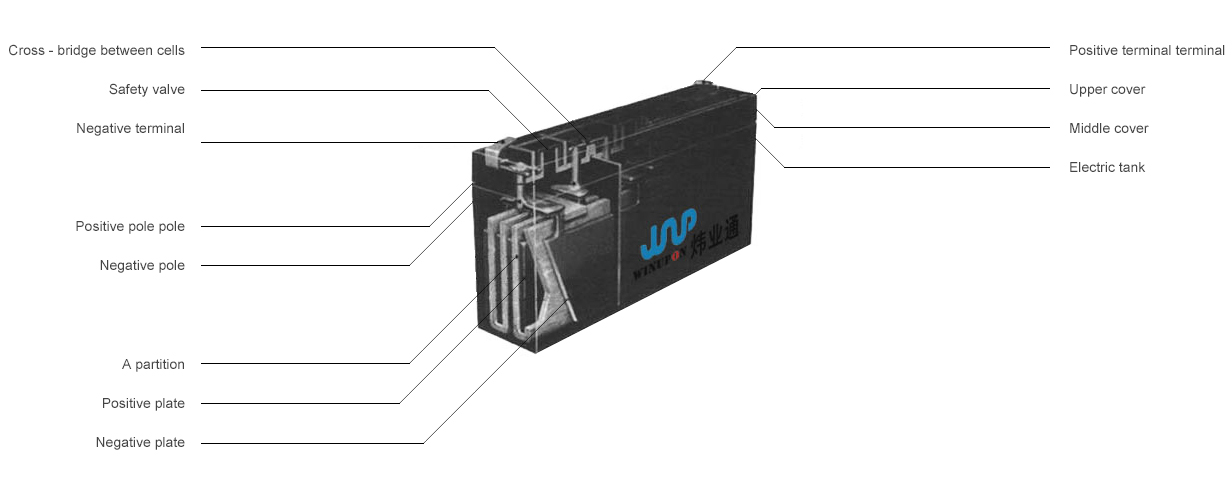

current location :home > Battery structure
Positive and negative plate ★ Lead calcium alloy grate coated with active material ☆ Guarantee sufficient capacity
☆ Guarantee life
☆ Reduce self discharge
A partition ★ High temperature resistant superfine glass fiber
★ PVC and PE
☆ Prevention of positive and negative plate short circuit
☆ Adsorptive electroliquid
☆ Anti active material falling off from the surface of the extruded plate
Electrohydraulic ★ Dilute sulfuric acid
★ Colloidal dilute sulfuric acid
☆ Participate in the reaction of positive and negative active substances
Shell cover ★ ABSAnd resistance ABS ☆ A polar group containing a positive or negative plate and a diaphragm
☆ Enough strength to withstand the internal pressure of the battery
Safety valve ★ Good insulation
★ Anti aging synthetic rubber
☆ If the pressure inside the battery exceeds the standard, release the gas and make it normal.
☆ Prevent oxygen from entering the battery
terminal ★ Made of copper and lead alloy
★The terminal part is sealed by double seal and O ring
★Sealant, red in positive pole, black in negative
★The selectable terminal is the internal thread type
☆ Large area terminals improve the performance and reliability of high current discharge.
☆ Good sealing of terminal position
☆ Make the connecting piece easy to load and unload

Maintenance free battery

Characteristic Structure Purpose
No maintenance needs no fluid; Component... Material UPS uninterruptible power supply;
A wide range of adaptation to temperature; Active substance... Oxide EPS fire-fighting standby power supply;
Long service life; Battery... Polyethylene Safety and protection alarm system;
Safety and explosion-proof; Polar plate... Lead Post and telecommunications communication equipment;
No free electrolyte, 90 degrees side down can still be used Battery cover... Polyethylene Electronic instruments and instruments;
The internal resistance is small, and the high current discharge performance is good. Sealant... Epoxy resin Micro electric tools;
Small self discharge; Safety valve... Rubber Portable electronic equipment;
Electric power plant, easy to use; Septum... Glass fiber Emergency lighting system;
Special formula, deep discharge recovery performance is good. Terminal... Copper / lead Power system;
The products are certified by CE. ROHS, and all batteries meet the national standard. Electrolyte... Sulfuric acid Electric toys;
Camera Equipment;
Control system DC screen;
Medical equipment, etc.

Solar energy \ Shenzhen circulating battery

Characteristic Structure Purpose
The unique alloy grid design ensures low self discharge rate. Component... Material Green new energy series;
Oxygen recombination technology, sealing and maintenance free; Active substance... Oxide Solar power generation system;
High purity raw material, stable quality, high reliability; Battery... Tight ethylene Wind power generation system;
The unique formula technology enhances the ability of over charging and the ability of over discharge recovery. Pole... Lead Wind and scenery complementary power generation system;
High quality AGM separator allows battery life to last longer. Battery cover... Polyethylene Solar power station;
Without free electrolyte, the side 90 degrees can still be used. Sealant... Ring resin UPS\EPS backup power supply;
Electric power plant, easy to use; Safety valve... Rubber Solar energy signal station;
The range of working temperature is wide: -20*C~ 50C Septum... Glass fiber Solar energy measurement station;
Terminal... Copper / lead The solar early-warning alarm system;
Electrolyte... Sulfuric acid Solar traffic light traffic light
The signal tower of the navigation system;
Huimin project solar street lamp and so on


Characteristic Structure Purpose
The unique alloy grid design ensures low self discharge rate. Components... Raw materials Green new energy series;
The gas recombination technology has high sealing efficiency and no acid mist precipitation. Active substance... Oxide Communication system base station;
High purity raw materials, deep discharge resistance, long cycle life. Battery... Polyethylene Microwave / switch base station;
The unique formula technology enhances the ability of over charging and the ability of over discharge recovery. Pole... Lead Radio and radio stations;
Special design and high reliable sealing technology make the battery safe, environmentally friendly and free of maintenance. Battery cover... Polyethylene Power plant / power transmission and transformation system;
The colloidal electrolyte formula does not cause stratification inside the battery. Sealant... Huai oxo resin Solar energy and wind power system;
Electric power plant, easy to use; Safety... Glue The application of deep circulation equipment in the banking system
The high rate discharge performance is enhanced by tight assembly technology. Clapboard... Glass fiber Signal system emergency lighting system;
The range of working temperature is wide: -20C~50*C Rock... Copper / lead Solar street lamp project;
Electrolytes... Condensate acid Mountain flood disaster monitoring and warning system;
Meteorological survey station;
Nautical system, etc.
